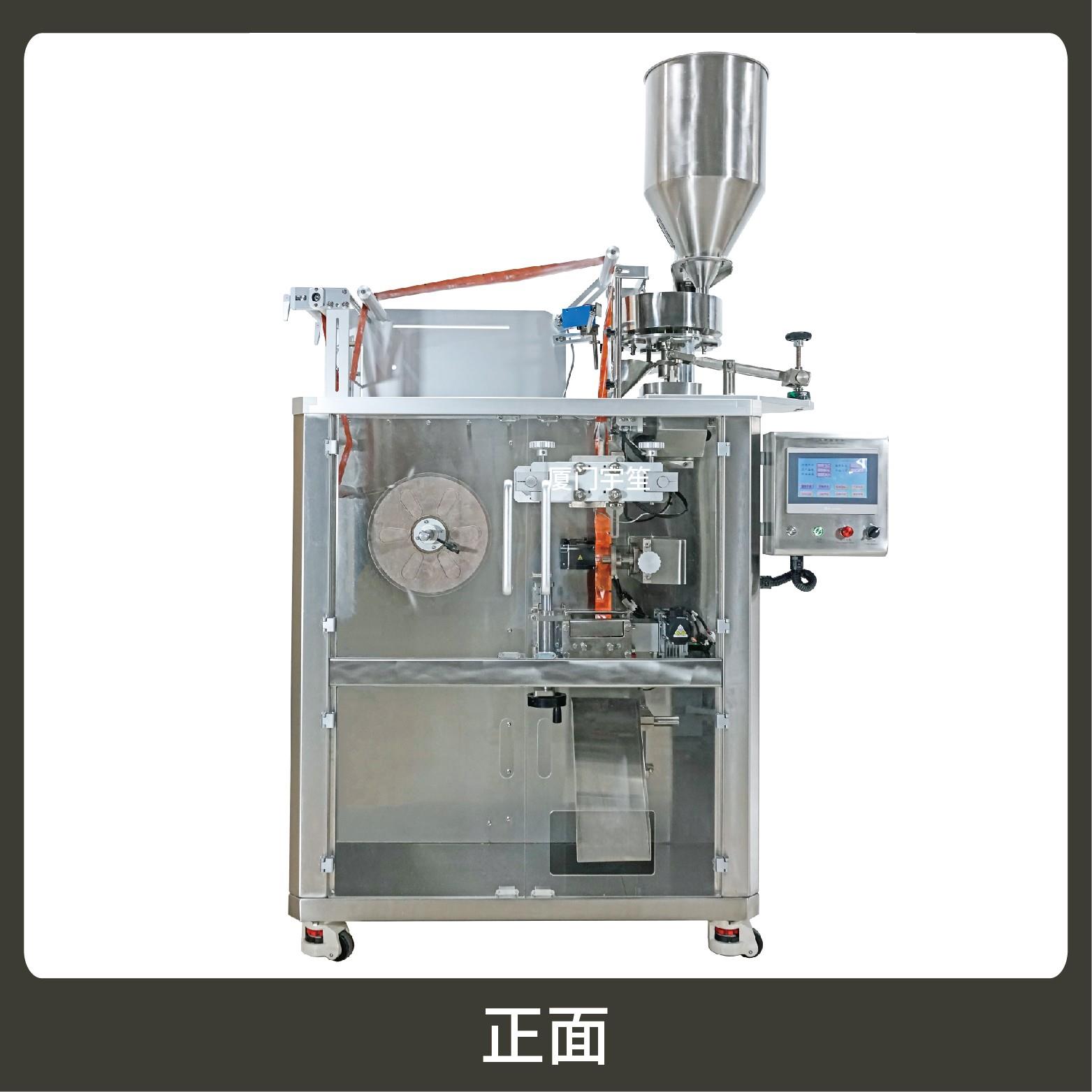

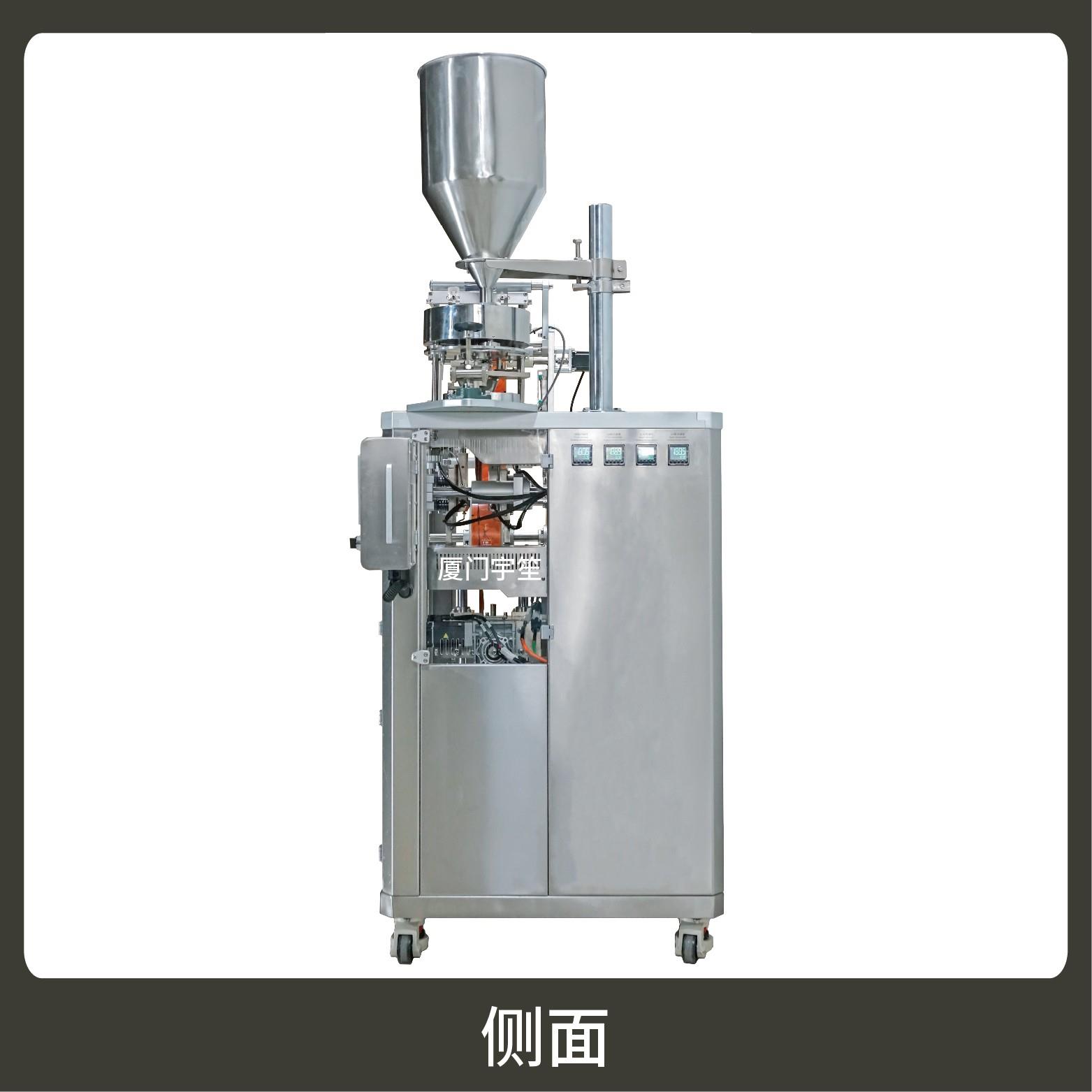

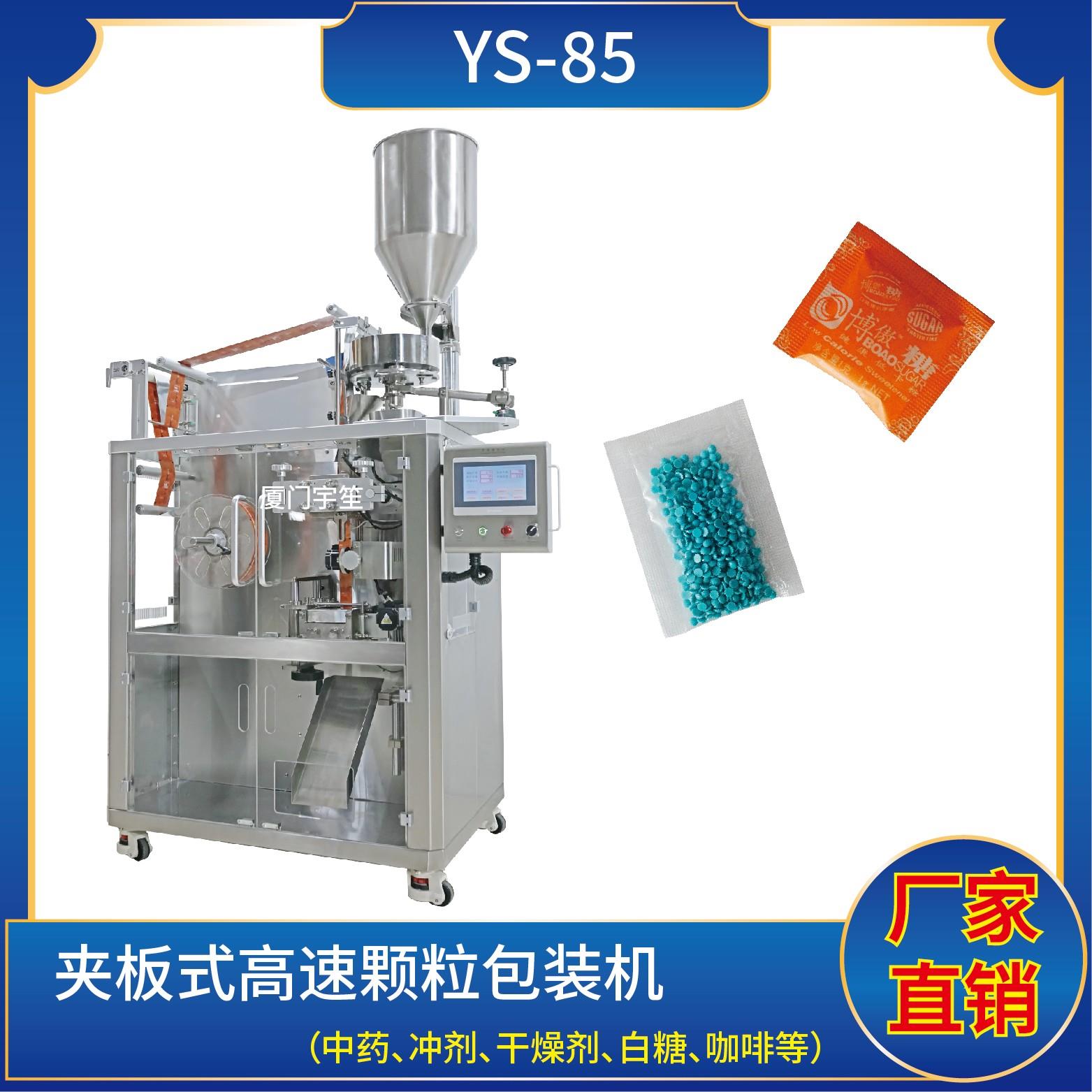

YS-85夾板式三邊封高速顆粒包裝機

YS-W85AK 高速顆粒包裝機



1、適用于食品、醫藥、化工、化妝品行業中顆粒、粉劑、液體、醬料等物品的計量包裝。

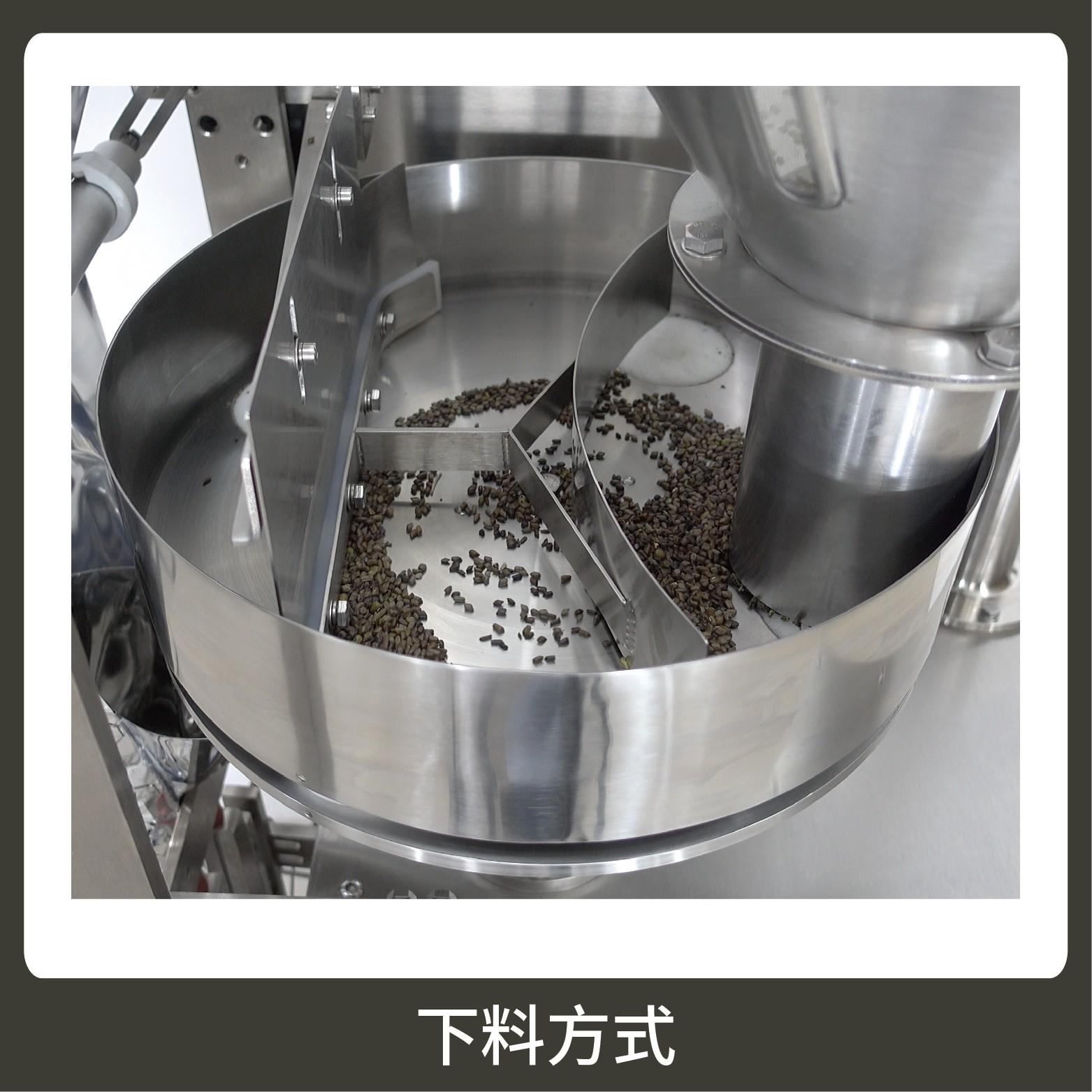

The machine is suitable for the measurement and packaging of particles, powders, liquids and sauces in food,medicine, chemical and cosmetics industries.See page 6 for details to select the blanking structure

2、可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。

All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.

3、觸摸屏操作,PLC 控制,驅動步進電機控制袋長,性能穩定、調整方便、檢測準確。智能式溫控儀,PID調節,保證將溫度的誤差范圍控制在1℃以內。

The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

4、包裝材料:聚丙烯/聚乙烯,鋁箔/聚乙烯,滌綸/鍍鋁/聚乙烯,尼龍/增強型聚乙烯,紙/聚乙烯等。

Packing materialBOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene,

                Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.

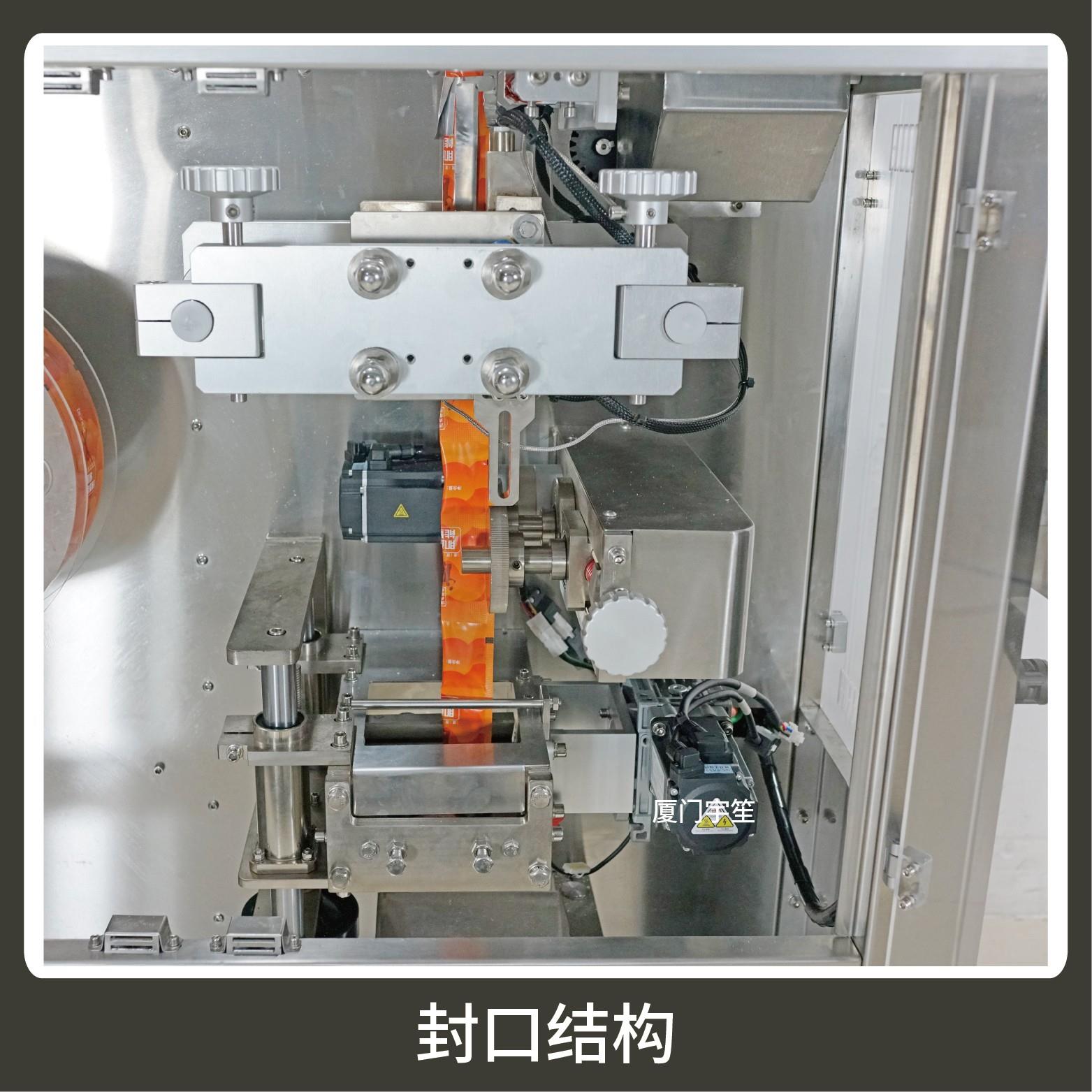

封口方式 Sealing Type

背封封口       三邊封口

Back sealing    Three sides sealing



技術參數

Technical Parameters



計量范圍:1 - 40 g

Measuring Scope

制袋尺寸:長( L )  :  30 - 110 mm

Bag Size ( W )  :  30 - 110 mm

包裝速度:40-130 bags/min

Packing Speed

外型尺寸:806*1180*2100 mm

Dimension ( L * W * H )

整機重量:300 kg

Weight

總 功 率:220V / 50Hz / 3kw

Total Power







1、可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。

All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.

2、觸摸屏操作,PLC 控制,驅動步進電機控制袋長,性能穩定、調整方便、檢測準確。智能式溫控儀,PID調節,保證將溫度的誤差范圍控制在1℃以內。

The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

計量范圍:1 - 40 g

Measuring Scope

制袋尺寸:長( L )  :  30 - 110 mm

Bag Size ( W )  :  30 - 110 mm

包裝速度:40-130 bags/min

Packing Speed

外型尺寸:806*1180*2100 mm

Dimension ( L * W * H )

整機重量:300 kg

Weight

總 功 率:220V / 50Hz / 3kw

Total Power


適用于食品、醫藥、化工、化妝品行業中顆粒、粉劑、液體、醬料等物品的計量包裝。

The machine is suitable for the measurement and packaging of particles, powders, liquids and sauces in food,medicine, chemical and cosmetics industries.See page 6 for details to select the blanking structure
